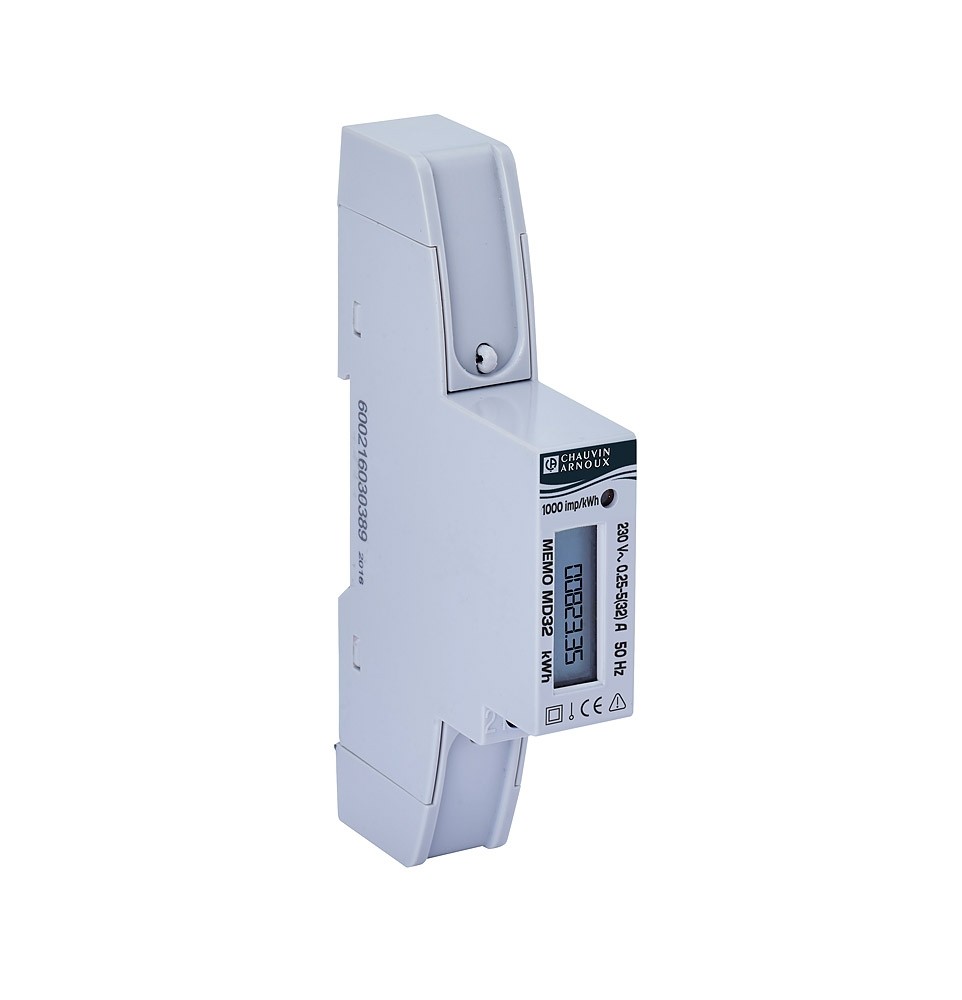

MEMO MD32

Highlights
Direct connection without parameter settings
Rated current: 5(32) A
Maximum permanent current: 45 A
Accuracy class 1 (IEC 62053-21)
Compact: 1 DIN module
Built-in lead-sealing system
Pulse output as standard
Description

MEMO MD32 is one of our economical solutions for measuring active energy consumption on a single-phase 230 Vac network.
Its compact dimensions (1 DIN module) make it easy to install in an electrical control box.

Main specifications:

  • Direct connection without parameter settings
  • Width: 1 module
  • Rated current: 5(32) A
  • Maximum permanent current: 45 A
  • Inrush current: 0.02A
  • LCD screen: 0 to 99999.88 kWh
  • Metrological LED: 1,000 flashes / kWh
  • Consumption < 0.4W / <8 VA
  • Pulse output: 1,000 pulses / kWh
Designation
Price
Reference
Quantity
Actions
COMPTEUR MEMO MD32 230Vac 32A
-
P01330740
-
