TCG6

Highlights
  • Class 1
  • IEC 584-1
  • Standard plug-in connector
  • 1100°C max.
Description

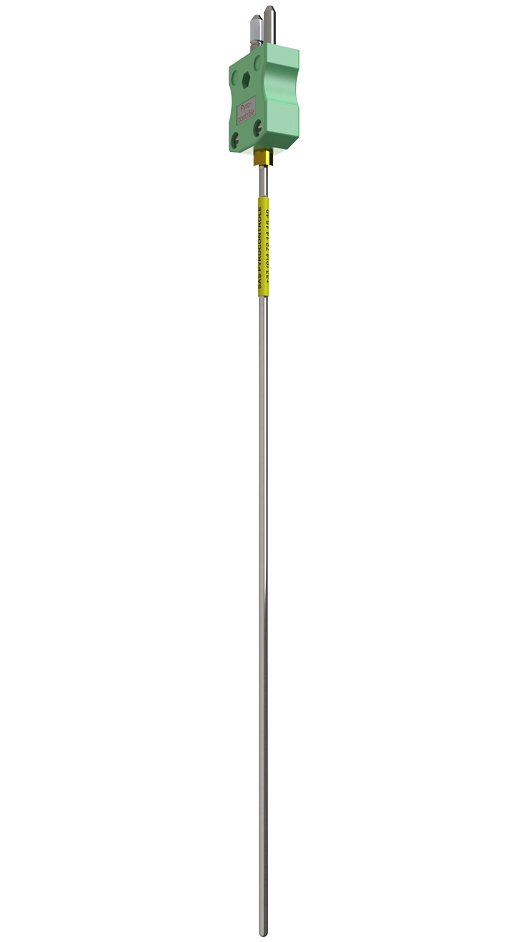

TCG6 Thermocouple
Bendable flexible sheathed thermocouple for adaptation to the
application, even in confined spaces. Small-diameter sensor
with a short response time. Output equipped with a standard
plug-in male connector with compensated contacts for quick
connection. As an option, the extension with the corresponding
female plug can be supplied with a PVC cable for a withstand
of 105°C.

Thermocouple type :

K/J/T/N

Material :

Inconel 600 / 316L / 316L (simple) 304L (Duplex) / Pyrosil

Class :

1 / 2

Standards :

IEC 584-1 / EN 61515

Thermocouple :

Simple / Duplex

Length L Min/ Max :

100 to 36000 mm / 100 to 30000 mm

Output :

Standard plug-in male connector with compensated contacts, via PVC extension cable with 105 °C max. withstand

Configure your sensor

Ask for a quote

Designation
Price
Reference
Quantity
Actions
TCG6 J2 304L 2 250
-
L220624-009
-
TCG6 J2 304L 2 500
-
L220624-014
-
TCG6 J2 316L 2 1000
-
L220624-024
-
TCG6 J2 316L 2 2000
-
L220624-034
-
TCG6 J2 316L 2 3000
-
L220624-038
-
TCG6 J2 304L 3 250
-
L220625-009
-
TCG6 J2 304L 3 500
-
L220625-014
-
TCG6 J2 316L 3 1000
-
L220625-024
-
TCG6 J2 316L 3 2000
-
L220625-034
-
TCG6 J2 316L 3 3000
-
L220625-038
-
TCG6 J2 304L 4,5 250
-
L220626-009
-
TCG6 J2 304L 4,5 500
-
L220626-014
-
TCG6 J2 316L 4,5 1000
-
L220626-024
-
TCG6 J2 316L 4,5 2000
-
L220626-034
-
TCG6 J2 316L 4,5 3000
-
L220626-038
-
TCG6 J2 304L 6 250
-
L220627-009
-
TCG6 J2 304L 6 500
-
L220627-014
-
TCG6 J2 316L 6 1000
-
L220627-024
-
TCG6 J2 316L 6 2000
-
L220627-034
-
TCG6 J2 316L 6 3000
-
L220627-038
-
TCG6D J2 304L 2 250
-
L220634-009
-
TCG6D J2 304L 2 500
-
L220634-014
-
TCG6D J2 304L 2 1000
-
L220634-024
-
TCG6D J2 316L 2 2000
-
L220634-034
-
TCG6D J2 316L 2 3000
-
L220634-038
-
TCG6D J2 304L 3 250
-
L220635-009
-
TCG6D J2 304L 3 500
-
L220635-014
-
TCG6D J2 316L 3 1000
-
L220635-024
-
TCG6D J2 304L 3 2000
-
L220635-034
-
TCG6D J2 316L 3 3000
-
L220635-038
-
TCG6D J2 304L 4,5 250
-
L220636-009
-
TCG6D J2 304L 4,5 500
-
L220636-014
-
TCG6D J2 316L 4,5 1000
-
L220636-024
-
TCG6D J2 304L 4,5 2000
-
L220636-034
-
TCG6D J2 316L 4,5 3000
-
L220636-038
-
TCG6D J2 304L 6 250
-
L220637-009
-
TCG6D J2 304L 6 500
-
L220637-014
-
TCG6D J2 316L 6 1000
-
L220637-024
-
TCG6D J2 316L 6 2000
-
L220637-034
-
TCG6D J2 316L 6 3000
-
L220637-038
-
Thermocouple K connec std gaine inc600 Ø1,0 Lg=500
-
L220652-014
-
TCG6 K1 INC600 1 4000
-
L220652-039
-
TCG6 K1 INC600 2 250
-
L220654-009
-
TCG6 K1 INC600 2 300
-
L220654-010
-
Thermocouple K connec std gaine inc600 Ø2,0 Lg=500
-
L220654-014
-
TCG6 K1 INC600 2 1000
-
L220654-024
-
TCG6 K1 INC600 2 1500
-
L220654-029
-
TCG6 K1 INC600 2 2000
-
L220654-034
-
TCG6 K1 INC600 2 2500
-
L220654-035
-
TCG6 K1 INC600 2 3500
-
L220654-036
-
TCG6 K1 INC600 2 4500
-
L220654-037
-
TCG6 K1 INC600 2 3000
-
L220654-038
-
TCG6 K1 INC600 2 4000
-
L220654-039
-
TCG6 K1 INC600 2 5000
-
L220654-040
-
TCG6 K1 INC600 2 5500
-
L220654-041
-
TCG6 K1 INC600 2 6000
-
L220654-042
-
TCG6 K1 INC600 2 6500
-
L220654-043
-
TCG6 K1 INC600 2 7000
-
L220654-044
-
TCG6 K1 INC600 2 7500
-
L220654-045
-
TCG6 K1 INC600 2 8000
-
L220654-046
-
TCG6 K1 INC600 2 8500
-
L220654-047
-
TCG6 K1 INC600 2 9000
-
L220654-048
-
TCG6 K1 INC600 2 9500
-
L220654-049
-
Thermocouple K connec std
-
L220655-009
-
TCG6 K1 INC600 3 300
-
L220655-010
-
Thermocouple K connec std gaine inc600 Ø3,0 Lg=500
-
L220655-014
-
TCG6 K1 INC600 3 600
-
L220655-016
-
TCG6 K1 INC600 3 800
-
L220655-020
-
TCG6 K1 INC600 3 1000
-
L220655-024
-
TCG6 K1 INC600 3 1200
-
L220655-026
-
TCG6 K1 INC600 3 1300
-
L220655-027
-
TCG6 K1 INC600 3 1500
-
L220655-029
-
TCG6 K1 INC600 3 1600
-
L220655-030
-
TCG6 K1 INC600 3 2000
-
L220655-034
-
TCG6 K1 INC600 3 3000
-
L220655-038
-
TCG6 K1 INC600 3 4000
-
L220655-039
-
Thermocouple K connec std
-
L220656-009
-
Thermocouple K connec std gaine inc600 Ø4,5 Lg=500
-
L220656-014
-
TCG6 K1 INC600 4,5 800
-
L220656-020
-
TCG6 K1 INC600 4,5 1000
-
L220656-024
-
TCG6 K1 INC600 4,5 2000
-
L220656-034
-
TCG6 K1 INC600 4,5 3000
-
L220656-038
-
Thermocouple K connec std
-
L220657-009
-
Thermocouple K connec std gaine inc600 Ø6,0 Lg=500
-
L220657-014
-
TCG6 K1 INC600 6 600
-
L220657-016
-
TCG6 K1 INC600 6 1000
-
L220657-024
-
TCG6 K1 INC600 6 1200
-
L220657-026
-
TCG6 K1 INC600 6 1500
-
L220657-029
-
TCG6 K1 INC600 6 2000
-
L220657-034
-
TCG6 K1 INC600 6 3000
-
L220657-038
-
TCG6D K1 INC600 2 250
-
L220664-009
-
TCG6D K1 INC600 2 500
-
L220664-014
-
TCG6D K1 INC600 2 1000
-
L220664-024
-
TCG6D K1 INC600 2 2000
-
L220664-034
-
TCG6D K1 INC600 2 3000
-
L220664-038
-
TCG6D K1 INC600 3 250
-
L220665-009
-
TCG6D K1 INC600 3 500
-
L220665-014
-
TCG6D K1 INC600 3 1000
-
L220665-024
-
TCG6D K1 INC600 3 2000
-
L220665-034
-
TCG6D K1 INC600 3 3000
-
L220665-038
-
TCG6D K1 INC600 4,5 250
-
L220666-009
-
TCG6D K1 INC600 4,5 500
-
L220666-014
-
TCG6D K1 INC600 4,5 1000
-
L220666-024
-
TCG6D K1 INC600 4,5 2000
-
L220666-034
-
TCG6D K1 INC600 4,5 3000
-
L220666-038
-
TCG6D K1 INC600 6 250
-
L220667-009
-
TCG6D K1 INC600 6 500
-
L220667-014
-
TCG6D K1 INC600 6 1000
-
L220667-024
-
TCG6D K1 INC600 6 2000
-
L220667-034
-
TCG6D K1 INC600 6 3000
-
L220667-038
-
Thermocouple K connec std gaine inc600 Ø1,0 Lg=250
-
L220652-009
-
Thermocouple K connec std gaine inc600 Ø1,0 Lg=1000
-
L220652-024
-
Thermocouple K connec std gaine inc600 Ø1,0 Lg=2000
-
L220652-034
-
